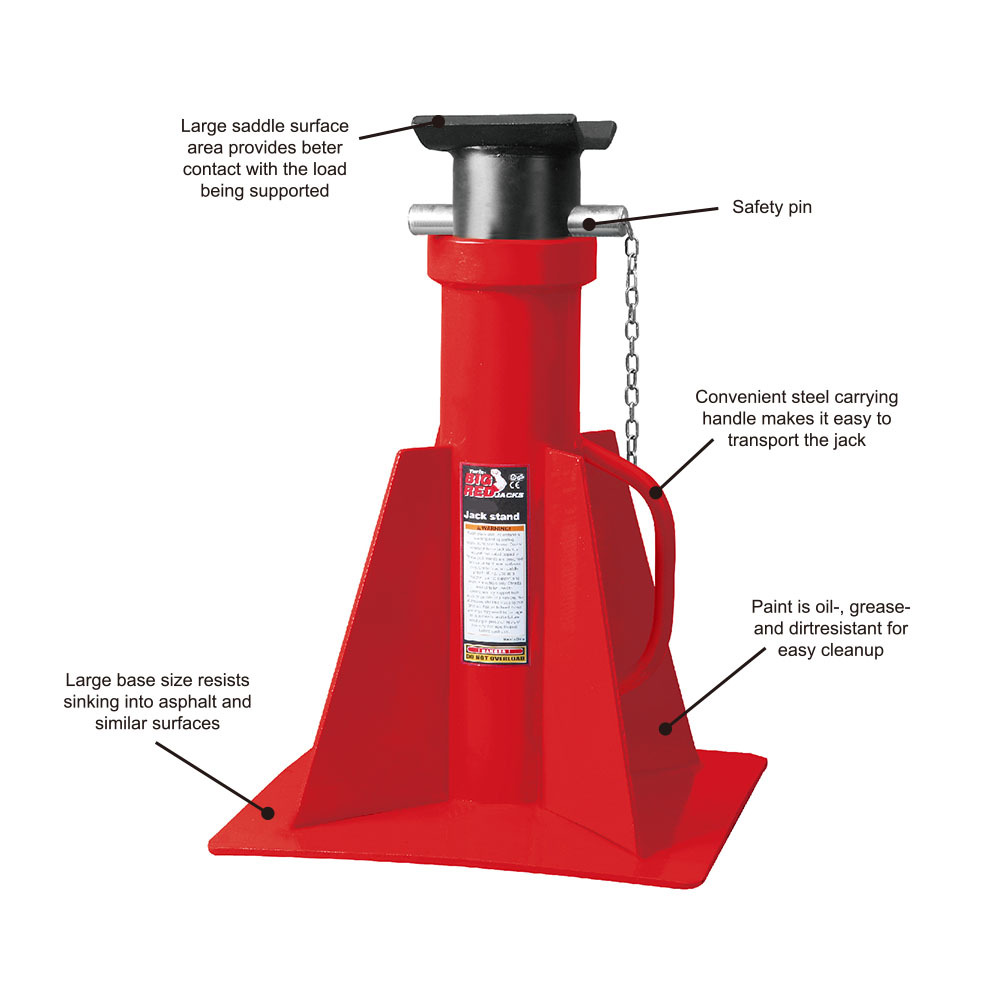

15Ton Heavy-Duty Vehicle Support Stand
Ratchet type axle stand with cast iron support post and tough welded steel plate base.
? Angled teeth in post prevent accidental release of load - the more weight applied, the tighter the post is locked.
產品參數
其他型號
關于產品
Product Information
Jack Stands are designed to support rated capacity, partial vehicle loads consisting of one end of a vehicle. Use both stands for each operation.
|
Model |
TZ150001 |
Capacity |
15 Ton |
|
Min. Height |
450 mm |
Max Height |
750 mm |
|
Package Size |
395x390x490 mm |
N.W./G.W. |
22.5/24.5 kg |
|
QTY/20'CY |
280 PCS |
? Ratchet type axle stand with cast iron support post and tough welded steel plate base.
? Angled teeth in post prevent accidental release of load - the more weight applied, the tighter the post is locked.
Storing the Equipment
1. Store in a dry location, recommended indoors.
2. Equipment should be stored in an area where they will not be subjected to damage.
3. If extreme temperatures or chemically active or abrasive environments are involved, the guidance provided in shall be followed.
4. Temperature - When equipment is used at temperatures above 140"F (60"C) or below -20"F (-29"C), the equipment manufacturer or a qualified person should be consulted.
5. Chemically Active Environments -The strength and operation of eqipment can be affected by chemically active environments such as caustic or acid substances or fumes. The equipment manufacturer or a qualified person should be consulted before equipment are used in chemically active environments.
6. Other Environments - The internal workings of equipment can be affected by high moisture, gravel or sand, silt, grit, or other dust-laden air. Equipment subject to these environments should have their inner components frequently cleaned, inspected, and lubricated.
Note: If the equipment is stored outdoors, be sure to lubricate all parts before and after use to ensure the equipment stays in good working condition.
